Waterless · Metal · Ambient Light
A10

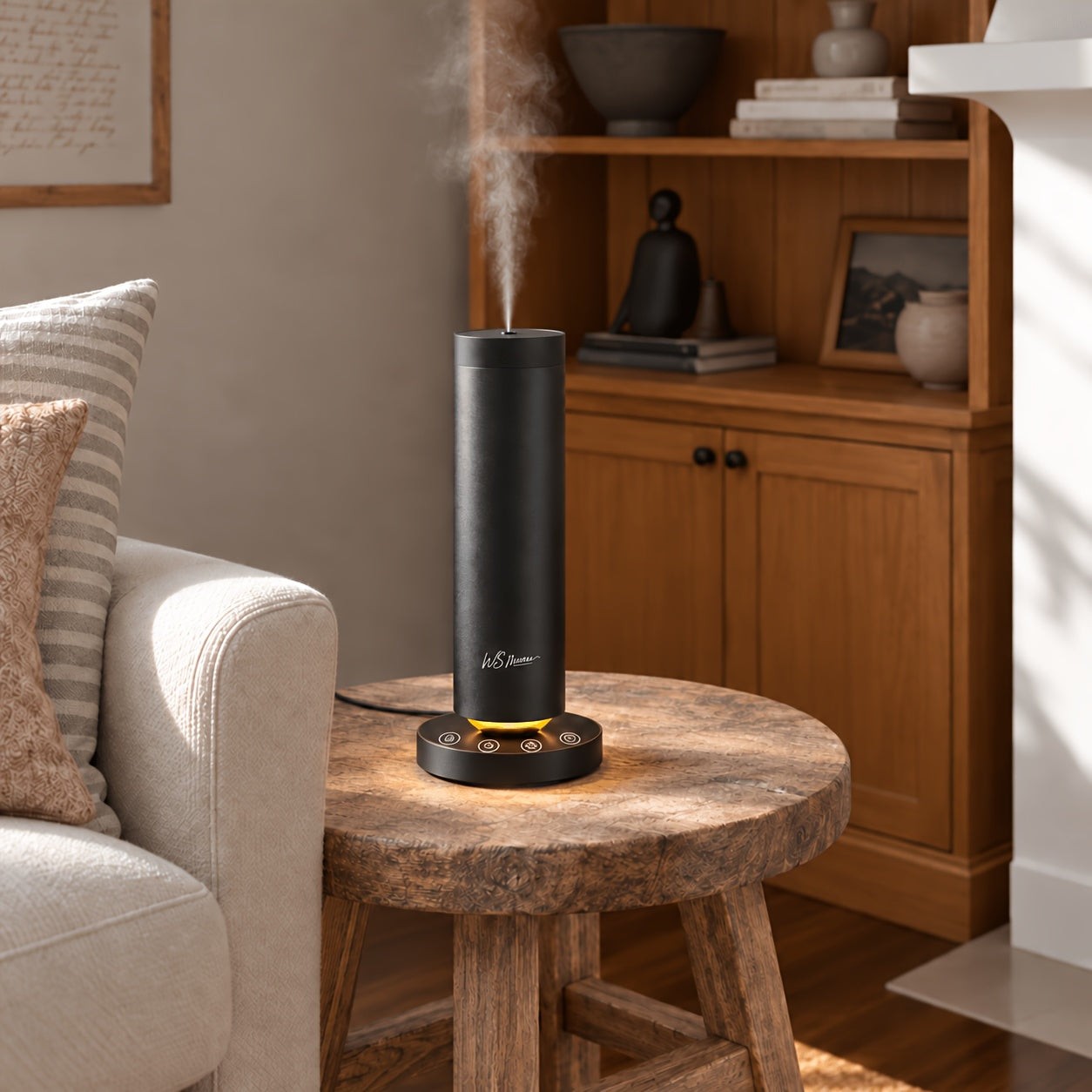

A slim column of aluminium that stands on the table and runs on pure oil alone. Four touch keys hide in the base, an amber ring glows underneath, and a 100 mL scent bottle sits inside — no water, no heat, no mist on your furniture.
8 W · 5 V 2 A
100 mL bottle
Up to 200 m³
3 spray patterns
2H · 6H · 12H · 24H/7
Aluminium body

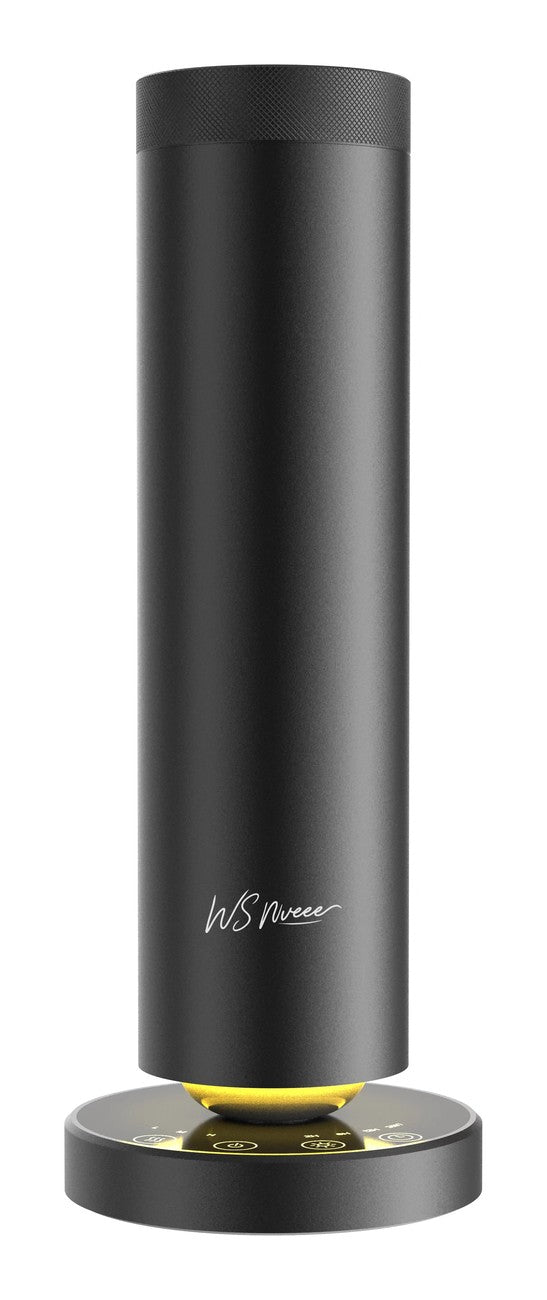

Model A10 · Desktop Metal Waterless Diffuser · Product Manual
Product Overview
Know Your A10
Everything about the A10 before the first fill — what it draws, what it holds, and how much room it can scent.
| MODEL | A10 |
| SIZE | Ø66 × Ø102 × H269.2 mmBody & foot diameter · 10.6 in tall |
| NET WEIGHT | 668 g23.6 oz |
| POWER | 8 W |
| INPUT | 5 V ⋮ 2 ASupplied adapter |
| BOTTLE | 100 mL3.4 fl oz · screw-in |
| COVERAGE | Up to 200 m³About 7,060 ft³ |
| LIGHT COLOR | YellowAmbient ring under the body |
| MATERIAL | AluminiumMatte anodised column |
| DIFFUSION | Waterless atomisationCold air · no heat, no water |
Ideal For
Living Room
Bedroom
Home Office
Reception
Boutique
No Water Tank, No Power Cord
The A10 stands on the surface and runs from the supplied 5 V 2 A adapter. Fragrance lives in a 100 mL screw-in bottle inside the column, so there is nothing to fill with water and nothing to spill into a reservoir. One unit scents up to 200 m³.
Quick Start
Setup in Five Steps
From the box to a first scent — five moves, about two minutes.
1

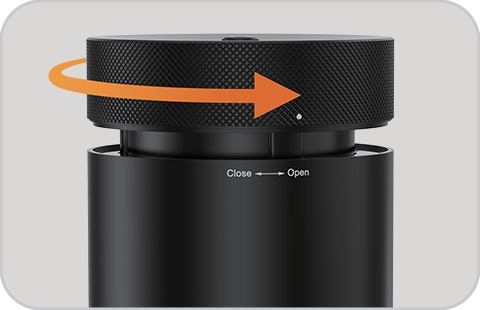

Turn the upper section from Close towards Open, then lift it off.
2

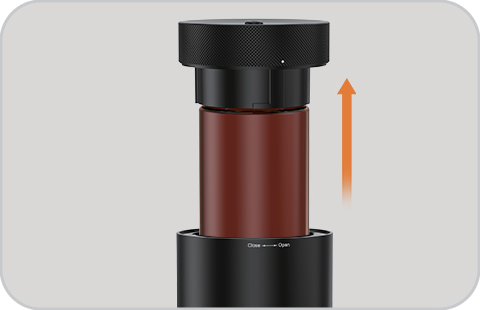

Reach in and pull the scent bottle straight up out of the base.

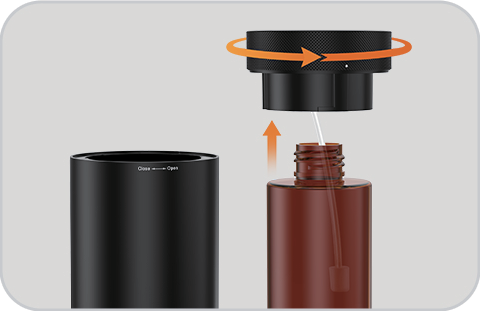

3
Unscrew the cap, fill with pure fragrance oil, then screw the cap back on. No water.
4

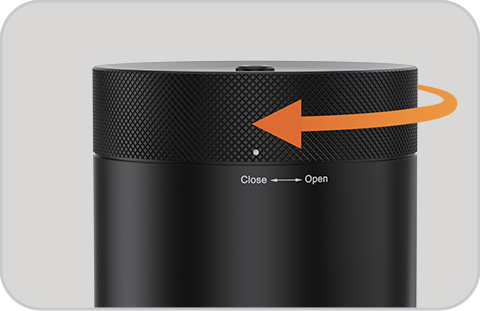

Lower the upper section back on and turn it until the Close mark lines up.
5

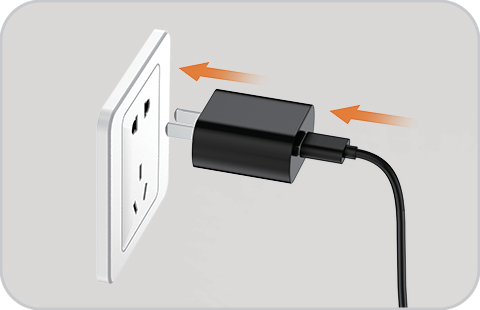

Connect the 5 V adapter to the wall and the diffuser, then press the power key in the base.

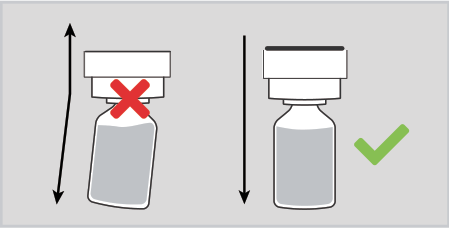

The bottle has to sit straight ①
Make sure the bottle is screwed in tight and parallel to the upper section of the diffuser. A bottle that sits at an angle does not seal — and that is where leaks start.
Important
Two Things to Get Right
A waterless diffuser has no water to dilute a mistake. These two precautions cover almost every failure we see.
1
Screw the bottle in tight — and parallel
The bottle must sit tight and parallel to the upper section. Fit it loosely or at an angle and oil will find its way past the seal: “Oil leaking — bottle is loose. Screw it in properly and straight.”
2

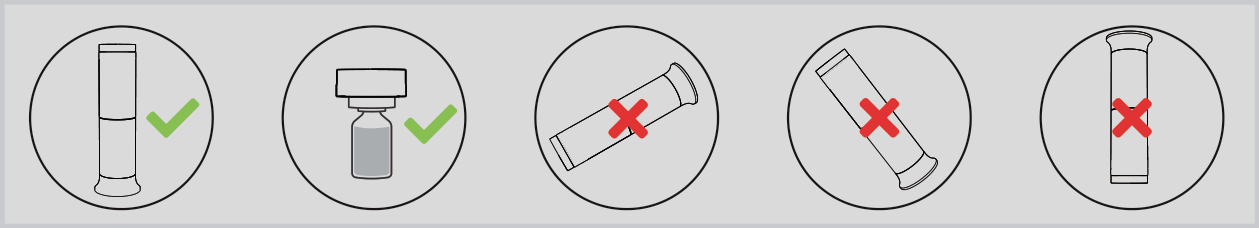

Keep the machine upright once it is assembled
After the bottle is fitted, keep the A10 vertical. Tilting or angling it can let oil overflow, which will contaminate the equipment circuit and affect normal use — and waste oil for no reason.
Upright is the only correct position once the bottle is fitted.
Product Overview

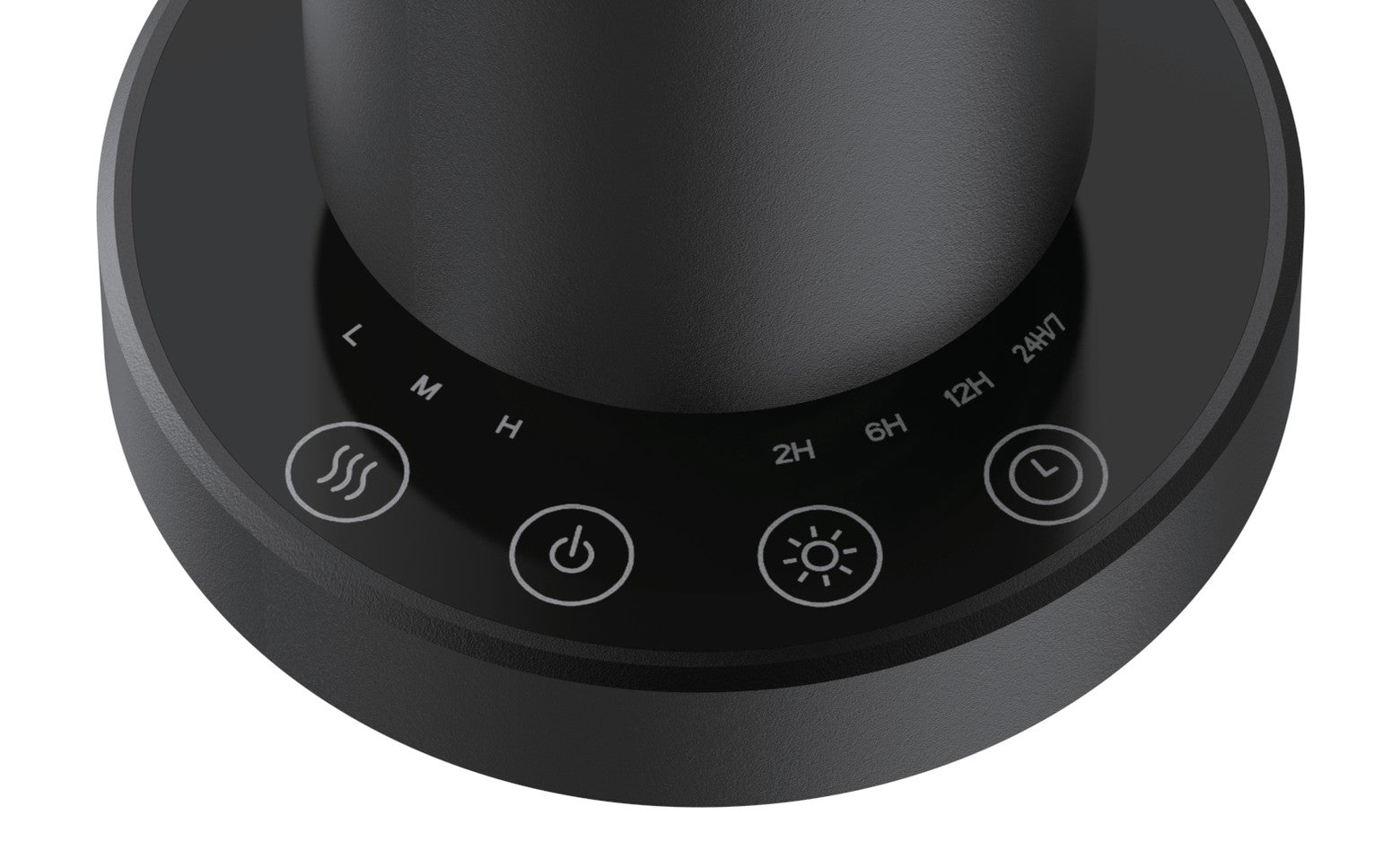

The Control Panel, Up Close
Four touch keys sit in the base, with the L / M / H letters to their left and the working-time marks to their right. Tap a key to see what it does.
Numbers 1–4 match the list. The letters on the ring light up to confirm your choice.
①
Intensity KeySteps the spray pattern through L, M and H
②
Power KeyPress once to turn the diffuser on or off
③
Light KeySwitches the amber light ring on or off
④
Working-Time KeyCycles 2H → 6H → 12H → 24H/7
Controls
Controls & Settings
Everything the A10 does is one press away. Pick an intensity and a working time, and leave it alone.
The Four Keys
Swipe the table sideways to see the whole row →
| Key on the base | What it does | Ring shows |
|---|---|---|
| Intensity | Steps the spray pattern through L → M → H. L sprays for 15 s and pauses 180 s, M for 20 s and pauses 120 s, H for 25 s and pauses 60 s. | L · M · H |
| Power | Press once to turn the diffuser ON — press once again to turn it OFF. | All marks off |
| Light | Press once to switch the light ON — press once again to switch it OFF. Independent of diffusion. | Amber ring on / off |
| Working Time | Press to move the run time on: 2H → 6H → 12H → 24H/7. The first three stop automatically when the time is up; 24H/7 runs continuously. | 2H · 6H · 12H · 24H/7 |
Spray Intensity
Pause
180 sec
Full cycle
3 min 15 sec
Best for
BedroomHome office
Share of each cycle actually spent diffusing7.7%
Working Time
Runs for
2 hours
Then
Stops on its ownNothing to press
Best for
Short sessionsDesk, bedside
Per day
2 h
Share of a 24-hour day it runs8%
The Pause Is the Point
The A10 does not spray continuously — it sprays, pauses, and repeats. The letters on the base tell you which pattern is running: 15 s / 180 s on L, 20 s / 120 s on M, 25 s / 60 s on H.

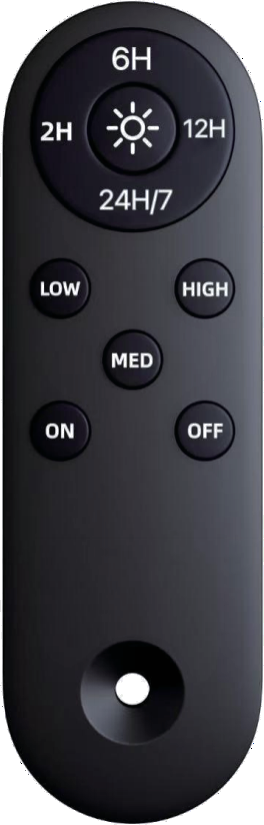

Remote
Remote Control Functions
The remote carries every function of the base — plus one the base does not have.
Model A10 · remote included
| Key | Function |
|---|---|
| 6H / 2H / 12H / 24H / 7 | Working time. The diffuser will operate for 6, 2 or 12 hours respectively, then stop on its own. 24H/7 runs continuously until you switch it off. |
| LOW / MED / HIGH | Spray intensity — the same three patterns as the base: LOW 15 s spray / 180 s pause, MED 20 s / 120 s, HIGH 25 s / 60 s. |
| ON / OFF | Power on and power off. |
| Sun keyCentre of the ring | Light mode control. Mode 1: the light stays always on. Mode 2: the light stays always off. |
One Set of Patterns
LOW, MED and HIGH on the remote are exactly the L, M and H patterns on the base. Setting an intensity one way changes it the other way too — there is only one diffuser to set.
Oil Guide
Choose the Right Oil
The A10 has no water tank, so there is nothing to dilute oil with. Fill it with pure, undiluted fragrance or essential oil and it behaves.
✓ Compatible
- Pure essential oils
- Pure fragrance oils
- WSNUEEE signature oils
- Oils supplied in standard screw-top bottles
✗ Not Compatible
- Water-based or diluted oils
- Thick, high-viscosity oils
- Perfumes with a high alcohol content
- Oils with added carrier liquids
⚠ Why It Matters
A diluted or water-based oil is the most common cause of a blocked atomisation head — and a blocked head is the most common reason an A10 stops producing scent.
Before Every Session
- Check the bottle is screwed in tight and parallel to the upper section.
- Keep the bottle upright while refilling so oil does not run down the outside.
- Never run the unit on empty — switch it off unless there is oil in the bottle, or alcohol during cleaning.
- Clean the machine when you switch to a noticeably different fragrance, so the old one does not follow the new one out.
Recommended
For best results use WSNUEEE signature fragrance oils — formulated for waterless atomisation. Shop at wsnueee.com
Care
Care & Cleaning
Clean the diffuser every 1–2 months, and whenever you switch fragrance, to ensure optimal performance.
1
Empty the bottle that came with your diffuser.
2
Add rubbing alcohol — fill the empty bottle with 1/4 in. of rubbing alcohol.
3
Screw it back in — fit the alcohol-filled bottle into the diffuser, tight and parallel.
4
Run it for 15 minutes to allow the alcohol to filter through the whole device.
5
Unplug and wipe — disconnect from the wall, keep the diffuser upright, and wipe it with a damp cloth to remove oil stains and fingerprints. Do not use harsh or abrasive cleaning products.
6
Refill and reconnect — remove the alcohol-filled bottle, insert the new fragrance oil, reconnect both halves of the diffuser and plug it in. You are ready to begin a new scenting.
Guidelines
Safety
Small habits that keep the scent clean and the diffuser running well.
Best Practices
- Keep the A10 upright once the bottle is fitted — tilting can spill oil inside the device and damage the mechanics.
- Never run the unit on empty. Turn it off unless there is oil in the bottle, or alcohol during cleaning.
- Clean the atomisation head every 1–2 months and whenever you change fragrance.
- Fit the bottle tight and parallel before every session.
- Use only the adapter supplied with the diffuser — check the voltage label matches your power supply before connecting.
- Use WSNUEEE-recommended oils for the best scent throw and device compatibility.
Safety Information
Do Not Tilt It
Do not tilt the diffuser as oil can spill inside the device and damage the mechanics.
Adult Supervision
Using the scent diffuser and fragrance oils requires adult supervision.
Keep It Dry
Do not wet the device or place it near any liquids, sinks, bathtubs, or outdoors.
Supplied Adapter Only
Do not use the device with any power cord other than the one provided. Position the cord so it is not a tripping hazard, and check the adapter's voltage label matches the power supply.
Never Run It Dry
Do not run the unit on empty. Unless there is oil in the bottle, or alcohol for cleaning, turn the device off.
Never Ingest the Oil
Do not ingest any fragrance oil or apply it to any part of the skin. Keep oils out of contact with eyes, ears, nose, mouth, and any other bodily opening. If contact occurs, flush with water immediately until all traces of oil have been removed.
Always unplug the A10 before cleaning, changing the nozzle or servicing it.
Variations in spray output between different oil types and brands are normal and do not indicate a defect.
Help
Troubleshooting
Five symptoms cover almost every support request. Tap one to open it.
Oil leaking
- The bottle is loose — screw it in properly and straight, tight and parallel to the upper section.
- Check the seal area for oil residue and wipe it dry before refitting the bottle.
- Keep the diffuser upright after assembly — a tilted machine will leak.
No diffusion at all
- Check whether the power is ON or OFF — press the power key once.
- If there is no diffusion, or it is weak, replace the oil with rubbing alcohol and run it through the machine for 5 minutes.
- If it still does not diffuse, the pump is damaged and needs replacing — contact support.
Little or no spray coming out
- The atomisation head is blocked — clean the diffuser by running rubbing alcohol through it, or replace the diffuser core.
- The diffuser core or its straw is missing or damaged — replace it with a new one.
- The pump is damaged and may need replacing.
Diffuser spraying liquid
- The diffuser core is damaged — replace the diffuser core.
- The machine is tilted or angled — make sure it is upright at all times.
No display on screen
- Make sure the power is ON.
- If the display screen is damaged, use the remote control instead.
Still need help? Contact WSNUEEE Support — we respond within 24 hours. Full details are in the support section below.
Support
We’re Here to Help
Covered for a full year from the date of purchase.
12
MONTHS WARRANTY
- ✓12-month manufacturer’s warranty from the date of purchase.
- ✓Covers defects in materials and workmanship under normal use.
- ✗Does not cover misuse, unauthorised modifications, or damage caused by incompatible oils.
Before You Return It
Please contact us first. Most issues can be resolved with a simple cleaning step — we’ll walk you through it personally. Our goal is to make sure you enjoy your WSNUEEE experience.
Spare Parts
Nozzles, diffuser cores and the 5 V adapter are available from WSNUEEE Support. Tell us your model and which part you need and we will send the right one.
Questions
Frequently Asked Questions
Quick answers to what A10 owners ask most.
What is the WSNUEEE A10?
The A10 is a waterless desktop diffuser in a matte aluminium column. It runs on 8 W from a 5 V 2 A adapter, holds a 100 mL screw-in scent bottle inside the body, and covers up to 200 m³ (about 7,060 ft³). It stands Ø66 mm at the body and Ø102 mm at the foot, is 269.2 mm tall, and weighs 668 g. There is no water tank.
How do I set up the A10?
Turn the upper section from Close towards Open and lift it off. Pull the scent bottle straight up out of the base. Unscrew the cap, fill the bottle with pure fragrance oil and screw the cap back on — no water. Lower the upper section back on and turn it until the Close mark lines up. Connect the 5 V adapter to the wall and the diffuser, then press the power key in the base.
Do I need to add water?
No. The A10 is a waterless diffuser with no water tank — there is nothing to dilute the oil with. Use pure, undiluted fragrance or essential oil only.
How do I change the spray intensity?
Press the intensity key on the base (the wavy-lines symbol) to step through L, M and H, or press LOW, MED or HIGH on the remote. L sprays for 15 seconds and pauses 180 seconds, M sprays 20 seconds and pauses 120 seconds, and H sprays 25 seconds and pauses 60 seconds. The matching letter lights up on the left of the ring.
What do the working-time settings do?
Press the working-time key (the clock symbol) to move the run time on: 2H, 6H, 12H and 24H/7. The diffuser runs for 2, 6 or 12 hours and then stops on its own. 24H/7 indicates that the diffuser will operate continuously, until you switch it off.
What does the light key do?
Press the light key once to switch the amber light ring on, and once again to switch it off. It works independently of diffusion, so you can have scent with the light off. From the remote, the sun key in the centre of the ring sets the light mode: Mode 1 keeps the light always on, Mode 2 keeps it always off.
How do I clean the A10?
Empty the bottle and fill it with 1/4 in. of rubbing alcohol. Screw the alcohol-filled bottle into the diffuser and run it for 15 minutes so the alcohol filters through the whole device. Unplug it, keep it upright and wipe it with a damp cloth to remove oil stains and fingerprints — avoid harsh or abrasive cleaning products. Then remove the bottle, insert new fragrance oil, reconnect both halves and plug it in. Clean every 1–2 months and whenever you switch fragrance.
How do I replace the nozzle?
Unplug the diffuser, remove the bottle of oil and carefully pull out the clear tube. Gently pull out the white nozzle by wiggling it with a pair of tweezers. Press the new nozzle very firmly into the top of the diffuser, then reinsert the tube into the correct opening of the nozzle — that is the small round holder the tube has to be firmly secured into.
There is little or no spray — what should I do?
The atomisation head is most likely blocked. Clean the diffuser by running rubbing alcohol through it, or replace the diffuser core. Also check that the diffuser core with its straw is present and undamaged — a missing or damaged straw will stop the spray. If neither helps, the pump may be damaged and need replacing.
Why is liquid spraying out of the diffuser?
Two causes: the diffuser core is damaged and needs replacing, or the machine is tilted or angled. Make sure the A10 is upright at all times — tilting can also let oil overflow and contaminate the equipment circuit.
Our Story
About WSNUEEE
We believe luxury fragrance should be effortless. WSNUEEE brings hotel-inspired scenting technology to your home — no water, no heat, no complexity. Just pure, beautiful fragrance.
Elevate the Air You Live In.
Need help with setup, ordering, or a warranty claim? Our team replies within 24 hours.
WOSUO INTERNATIONAL LIMITED
Unit 11, 9/F, The Cloud, No. 111 Tung Chau Street, Tai Kok Tsui, Kowloon, Hong Kong
Emailwsnueee@outlook.com
WhatsApp+852 64867199
Support sitewsnueee.com/support
Follow@wsnueee
Ready to scent your space?

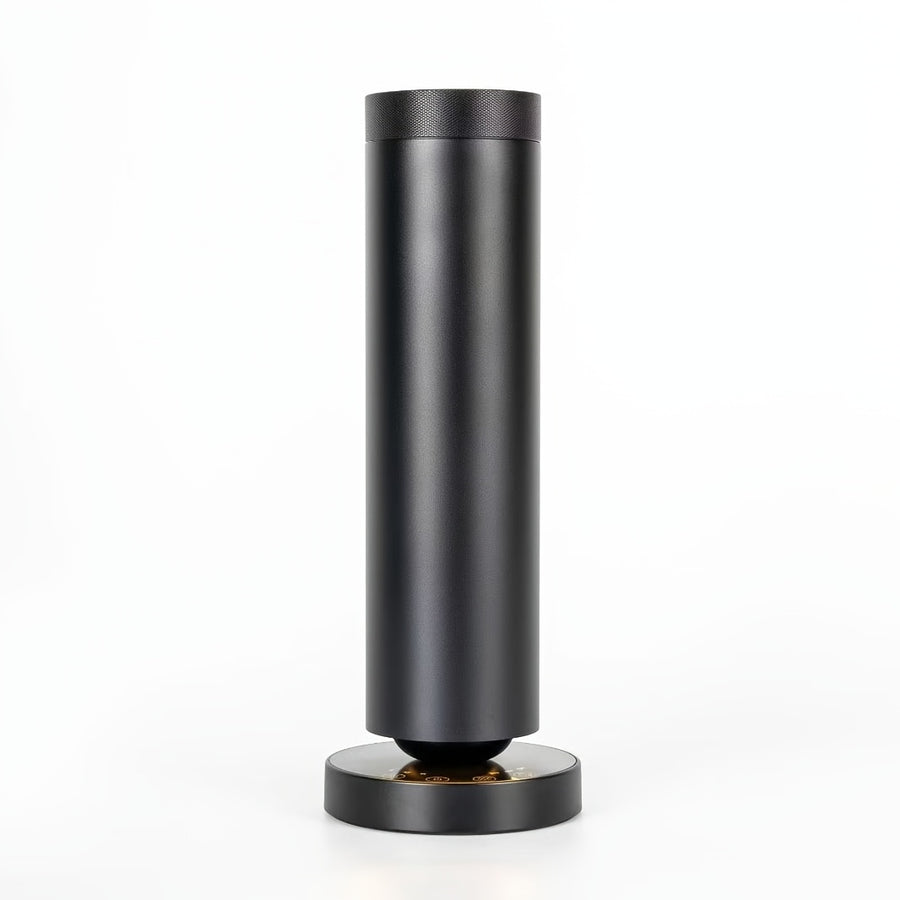

Desktop Towel Luxury 1000 Sq.Ft
