Work time
15 s
On this page
Bluetooth · Waterless
AE103
A waterless aroma diffuser you run from your phone. Pure oil only — no water tank, no heat, no warm-up. Pair it once over Bluetooth and the Scent Marketing app handles the schedule.
2 W · AC 100–240 V
100 mL bottle
Up to 500 sq ft
Bluetooth app control
4 concentration grades
Ultra-fine cold mist
Model AE103 · Bluetooth Aroma Diffuser · Product Manual
Product Overview
Know Your AE103
A plug-in waterless diffuser with app control. Here is what it draws, what arrives in the box, and where it earns its keep.
| MODEL | AE103 |
| SIZE | 4.8 × 2.6 × 8.4 in122 × 65 × 214 mm |
| BOTTLE | 100 mLApprox. 3.4 fl oz · refillable |
| INPUT | AC 100–240 V · 50/60 Hz |
| POWER | 2 W |
| COVERAGE | Up to 500 sq ft75 m³ · 2,650 ft³ of room volume |
| NET WEIGHT | 0.66 lb0.30 kg |
| MATERIAL | Plastic |
| CONTROL | Bluetooth appScent Marketing · iOS & Android |
| GRADES | 4 presets + customG1 (gentlest) to G4 (strongest) |
| OIL | Pure essential or fragrance oil onlyNever add water |

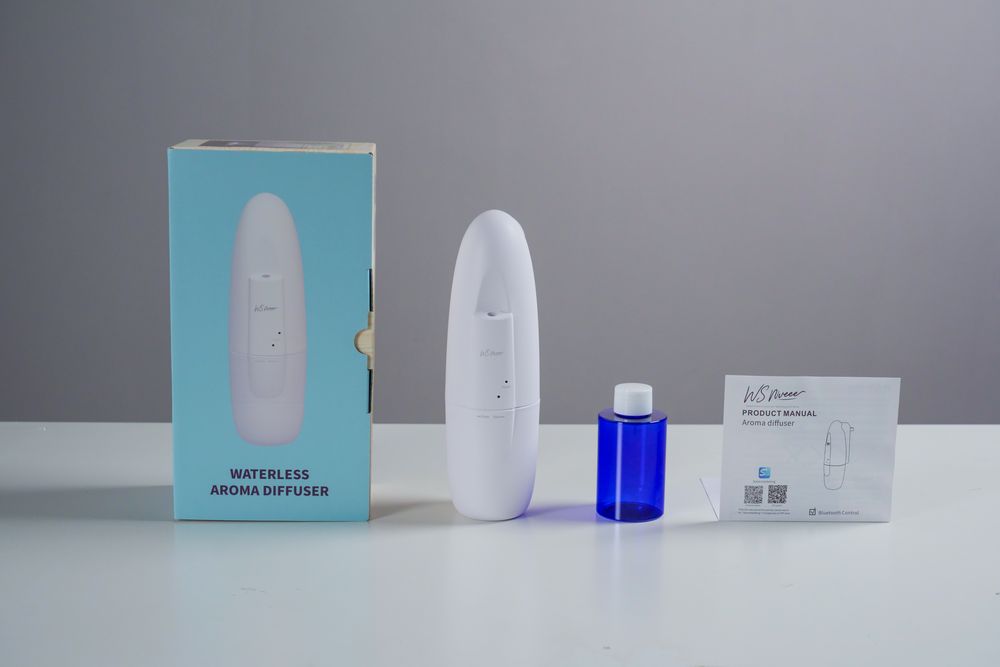

What’s in the Box
- ✓AE103 Aroma DiffuserThe body, the atomized head and the built-in plug — everything above the bottle.
- ✓100 mL Oil BottleRefillable. Fill it with pure essential or fragrance oil — no water.
- ✓User ManualThis guide, plus a quick card showing the app pairing password.
Keep the Filter
There is a small filter inside the tube that connects the bottle to the atomized head. Leave it in place — it keeps oil residue out of the air path.
Ideal For
Bedroom
Bathroom
Study / Office
Entryway
Hotel & Retail
Where Scent Becomes a Service
Because the AE103 is app-scheduled and covered up to 500 sq ft, the same unit is used in guest rooms, washrooms, meeting rooms and brand stores — anywhere the scent has to run to a timetable without anyone touching it.
Installation
Setup in 60 Seconds
Four steps from the box to your first scent. No water, no warm-up.
1

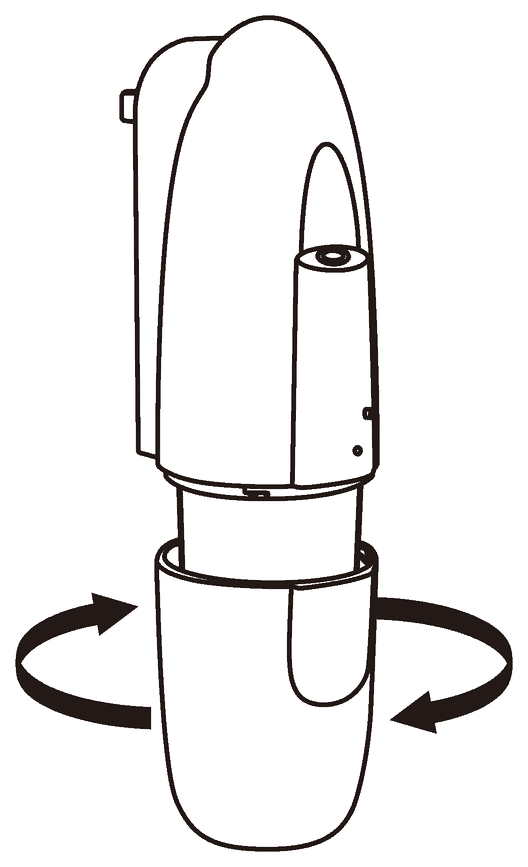

Turn the lower cover counterclockwise and lift it away from the body.
2

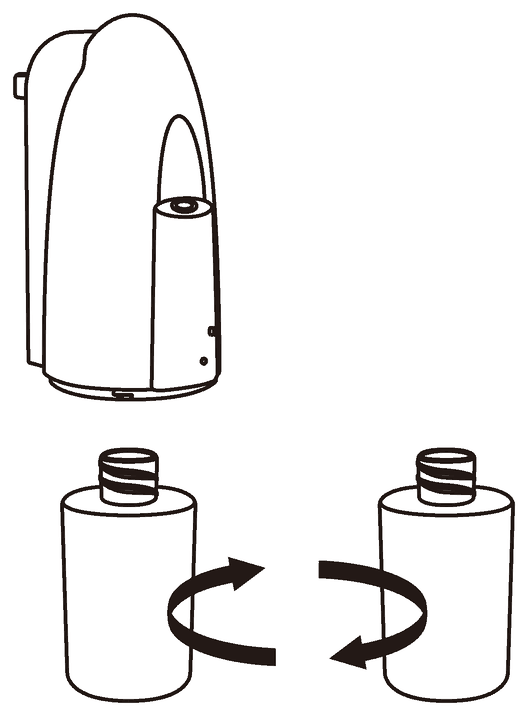

Unscrew the bottle and fill it with pure essential or fragrance oil. No water.
3

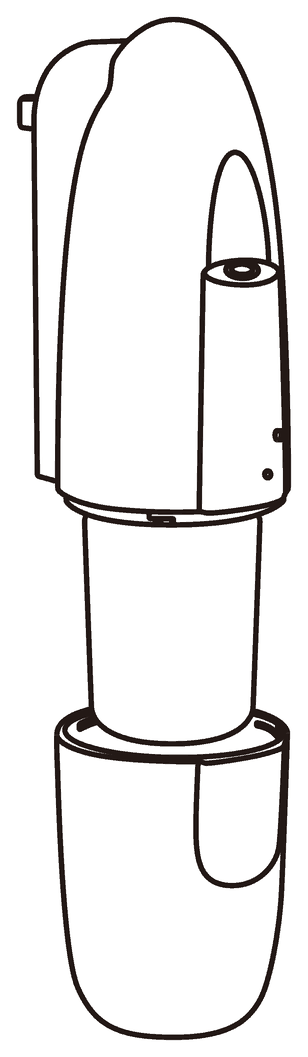

Screw the bottle back into the base, then screw the lower cover on until it seats.
4

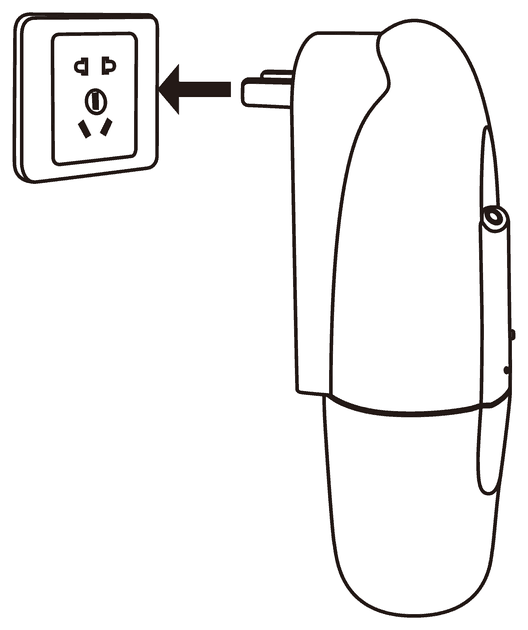

Plug it into the socket and keep the unit vertical. Rotate the plug prongs if the outlet is sideways.
⚡ Three Things Worth Knowing
1. Do not remove the filter inside the tube. 2. Keep the unit upright whenever oil is in the bottle — tilting or laying it flat lets oil overflow. 3. The first time you pair it, the app asks for the password 8888.
Parts
Know Your Diffuser
Five parts do the work. Tap any label on the drawing to read what it does.

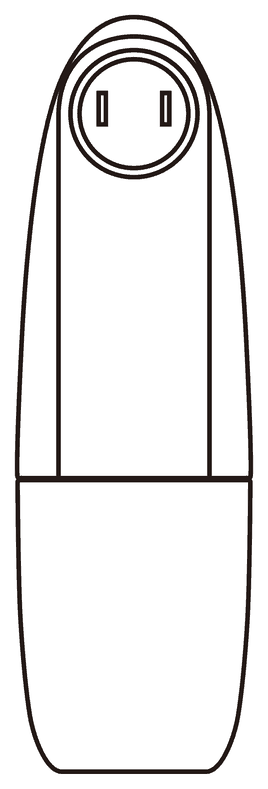

The Atomized Head
1
Atomized HeadTurns oil into an ultra-fine cold mist
2
Grade ButtonChanges the concentration grade on the unit
3
Reset ButtonShort press restores password 8888; long press factory-resets
4

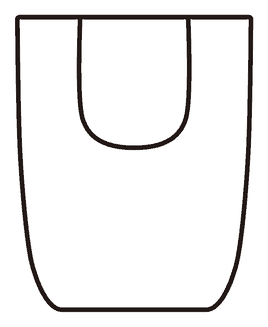

Oil Bottle100 mL refillable · pure oil only
5

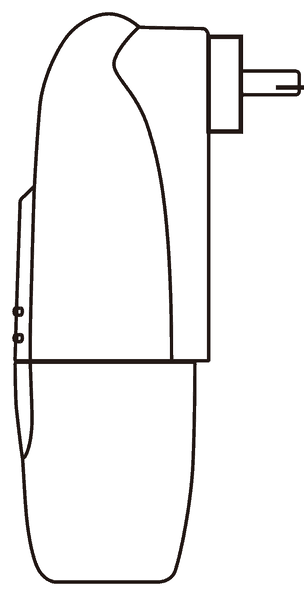

Rotatable PlugTurns to suit the socket so the unit hangs upright
Operating Basics
Indicator & Reset Button
Two small controls carry the whole on-device story. Everything else lives in the app.
Reset
Short pressRestores the original app password, 8888.
Long pressRestores the diffuser to its factory settings.
Indicator
When the light is on, the diffuser is inside a working period and actively diffusing. When Bluetooth pairs successfully, the unit answers with a short “beep”.
Why There Is No On/Off Switch
The AE103 is an APP version unit: on and off are simply your schedule. The indicator tells you whether the current moment falls inside one. If you never pair the app, the unit falls back to its stored schedule and the grade button still works.
App Control
Pair It with the Scent Marketing App
The app controls everything the AE103 does — when it runs, for how long, and how strong. Pairing takes about a minute.
Scent MarketingFree on Google Play and the App Store
Scan the code for your phone, or search “Scent Marketing” in Google Play or the App Store.
- Turn on Bluetooth before you open the app.
- Allow location access — Android needs it to scan for nearby devices.
- Keep the phone within a few feet of the diffuser while pairing.
AndroidGoogle Play
iOSApp StoreAdd Your Diffuser — Step by Step
9:41
Select version
Bluetooth version
WIFI version
Device↻
⚲Search device
AAA›
AAA›
‹AAA↻
Input password
Factory default password is 8888
Login
Remember password
‹Device controlSave
SetAbout
Name:AAA
Label:Living room
Time switch⏺
00:00–23:59Every day
Grade 1
23:58–00:01Every day
Grade 1
‹Working period settingSave
Start working timeStop working time
230001
590001
:
230001
590001
Repeat
MonTueWed
ThurFriSat
Grade
−7+
Custom Stall
Work Time(s)Stop Time(s)
23238
23239
24240
25241
‹Change password
Enter new password
Confirm password
Change password
What Each Screen Does
Device control → Set is the one you will use most: rename the unit, note where it lives, and add working periods. Slide a period row sideways to delete it.Device control → About carries the PCB, equipment and app versions — handy if you ever need support — and the way in to Change password.
⚠ Forgot the Password?
Press the reset button on the unit to restore the factory setting. The factory password is 8888. A short press on the same button restores the password only; a long press returns the whole diffuser to factory defaults.
Grades
Concentration & Consumption
Four preset grades trade scent strength against how fast the bottle empties. Pick a grade to see its rhythm.
Stop time
285 s
Consumption
0.07 g/h
Share of each cycle spent spraying5% · G1
All Grades at a Glance
Swipe the table sideways to see every column →
| Grade | Work time (s) | Stop time (s) | Consumption (g/h) |
|---|---|---|---|
| G1 | 15 | 285 | 0.07 |
| G2 | 15 | 135 | 0.15 |
| G3 | 15 | 85 | 0.23 |
| G4 | 15 | 60 | 0.30 |
| Customized | 3–15 | 60–900 | — |
Reading the Numbers
The work time is 15 seconds in every preset grade. What changes is the pause: a longer stop time means a gentler scent and a slower draw on the bottle.
Custom Stall
Tick Custom Stall in the app to set your own work time (3–15 s) and stop time (60–900 s) instead of using a preset.
Care
Cleaning & Maintenance
Two reasons to clean: you are changing oils, or the mist has weakened.
Clean When
- You are about to switch to a different essential oil.
- The atomization volume becomes weak, or the scent seems muted.
- You have been running the same oil for a long stretch and residue is starting to build.
Cleaning Steps
- Unplug the diffuser, then pull the atomized head out and loosen the bottle.
- Fill a container large enough to hold the bottle with rubbing alcohol and soak the bottle for 5–10 minutes.
- Rinse the bottle with clean alcohol and pour it away.
- Leave everything to air-dry completely before reassembling. Never run the unit while parts are still wet.
⚠ Keep Water Away
The AE103 is a waterless diffuser. Never put water in the bottle, never rinse the body under a tap, and never submerge any part other than the bottle. Water in the air path is the fastest way to ruin an atomized core.
Safety
Important Warnings
Four rules cover almost everything that can go wrong with an oil diffuser.

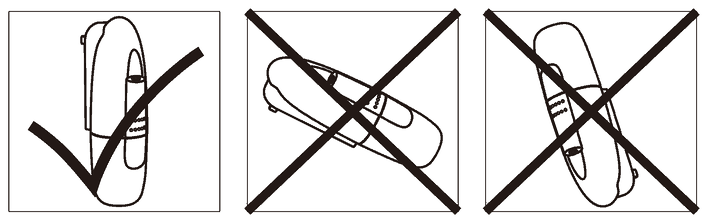

Keep It Vertical
Keep the machine upright. Tilting it or laying it flat can make oil overflow, and the efficiency of the machine may be affected.
Do Not Modify
Do not modify, disassemble or repair the machine yourself. There are no user-serviceable parts inside the body.
Mind the Environment
Do not use this product under high humidity or high pressure conditions. Keep it away from open flames and direct sunlight.
Screw, Don’t Tape
If you mount the machine on a wall, use screws rather than tape. A tape-mounted unit can work loose and fall — and a fall spills the oil.
Unplug before cleaning. Always disconnect the diffuser from the socket, and let it stand upright while you work on it.
Support
Troubleshooting
Before you ask for a repair, run through these first — they cover the great majority of cases.
Swipe the table sideways to see the full remedies →
| Symptom | Remedy |
|---|---|
| Does not diffuse | Check whether the machine is in a “not working period”. If it is, it will not spray — that is the schedule, not a fault. Otherwise, check whether the air pump is damaged; if it is, replace it with a new one. |
| Spray little | Check whether the gasket is damaged or loose, and adjust or replace it. Then check whether the atomized core is plugged — clean it with alcohol, or replace it with a new one. |
| Oil spill | Check whether the atomized head is damaged. A damaged head leaks oil instead of atomizing it. |
| Oil overflow | Check whether the oil bottle is loose and install it correctly. Check the gasket on the atomized head for damage and replace it if needed. Finally, keep the machine vertical — tilting it or laying it flat will cause oil to overflow. |
Still Stuck?
Try a long press on the reset button to return the diffuser to factory settings, then pair it again with password 8888. If that does not clear it, contact us at wsnueee@outlook.com before arranging any repair.
Warranty
Warranty & Support
Covered for a year, and looked after for longer than that.
12
MONTHS WARRANTY
- ✓Covers defects in materials and workmanship under normal use, from the date of purchase.
- ✓Replacement parts including the atomized head, gaskets and the oil bottle are available from WSNUEEE support.
- ✗Does not cover misuse, unauthorized modification, water damage, or damage caused by oils that are not pure essential or fragrance oil.
Reaching Us
Email
Reply within 24 hours. wsnueee@outlook.com
WhatsApp
Fastest for setup help. +852 64867199
Support site
Guides for every model at wsnueee.com/support
Before You Return It
Please contact us first. Most AE103 issues come down to oil tracking, a loose bottle or a plugged atomized core — all of which we can walk you through in a few minutes. Our goal is to make sure you enjoy your WSNUEEE experience.
Amazon Customers
We actively monitor your feedback to improve our products. If something isn’t working right, please reach out to us before leaving a review — we’re committed to making it right.
Questions
Frequently Asked Questions
Quick answers to what AE103 owners ask most.
What is the WSNUEEE AE103?
The AE103 is a waterless aroma diffuser that plugs into a wall socket and is controlled over Bluetooth from the Scent Marketing app. It runs on 2 W, holds a 100 mL refillable oil bottle, covers up to 500 sq ft (75 m³ / 2,650 ft³), and offers four preset concentration grades plus a custom setting. There is no water tank and no power cord.
How do I set up the AE103?
Unscrew the lower cover. Unscrew the oil bottle and fill it with pure essential or fragrance oil — no water. Screw the bottle back into the base, screw the lower cover on until it seats, then plug the unit into the socket, keeping it upright. Rotate the plug prongs if your outlet is sideways.
Do I need to add water?
No. The AE103 atomizes pure oil. Adding water or a water-based oil will clog the atomized core and may damage the diffuser.
How do I pair the AE103 with my phone?
Install the free Scent Marketing app, turn on Bluetooth and allow location access. Choose Bluetooth version, tap the refresh icon to scan, select your diffuser in the list, then enter the password. The factory default password is 8888.
What is the factory password, and how do I reset it?
The factory password is 8888. To change it, open Device control → About → Change password and enter the new password twice. If you forget it, press the reset button on the unit — a short press restores 8888, and a long press restores the whole diffuser to factory settings.
What do the concentration grades G1 to G4 mean?
Each grade sets how long the unit pauses between sprays. Work time is 15 seconds in every preset grade; the stop time runs from 285 seconds on G1 down to 60 seconds on G4. A longer stop time means a gentler scent and a slower draw on the oil. You can also tick Custom Stall to set your own work time (3–15 s) and stop time (60–900 s).
How long does the 100 mL bottle last?
The bottle holds roughly 90 g of oil. At G1 the diffuser draws about 0.07 g per hour of operation, so a full bottle lasts well over a month of continuous running; G4 draws more than four times as much (0.30 g/h) and empties the bottle proportionally faster. How long it lasts in practice depends on how many hours a day you run it.
Why does the unit not spray?
First check the schedule. If the current moment falls outside every working period you have set, the AE103 stays silent by design — that is the “not working period”. If the schedule is fine, check whether the air pump is damaged and replace it if so.
What does the indicator light mean?
When the light is on, the diffuser is inside a working period and diffusing. When Bluetooth connects and operates successfully, the machine emits a short “beep”.
How often should I clean the AE103?
Clean it whenever you switch to a different essential oil, and any time the atomization volume becomes weak. Unplug first, pull out the atomized head, loosen the bottle, then soak the bottle in rubbing alcohol for 5–10 minutes and let everything air-dry completely before reassembling.
Can the AE103 be wall mounted?
Yes, but use screws rather than tape. A tape-mounted unit can work loose and fall, and a fall spills the oil. Keep the machine vertical at all times.
Which oils can I use?
Pure essential oils and pure fragrance oils. Do not use diluted or water-based oils, thick or highly viscous oils, perfumes with a high alcohol content, or oils with added carrier liquids.
