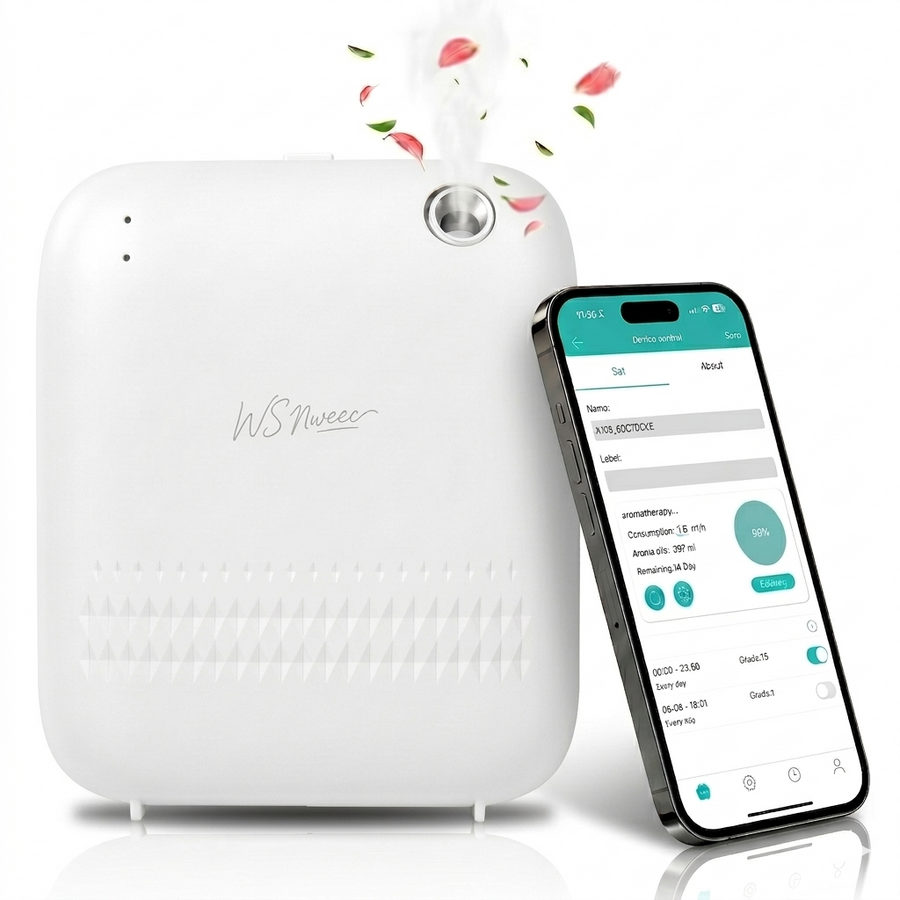

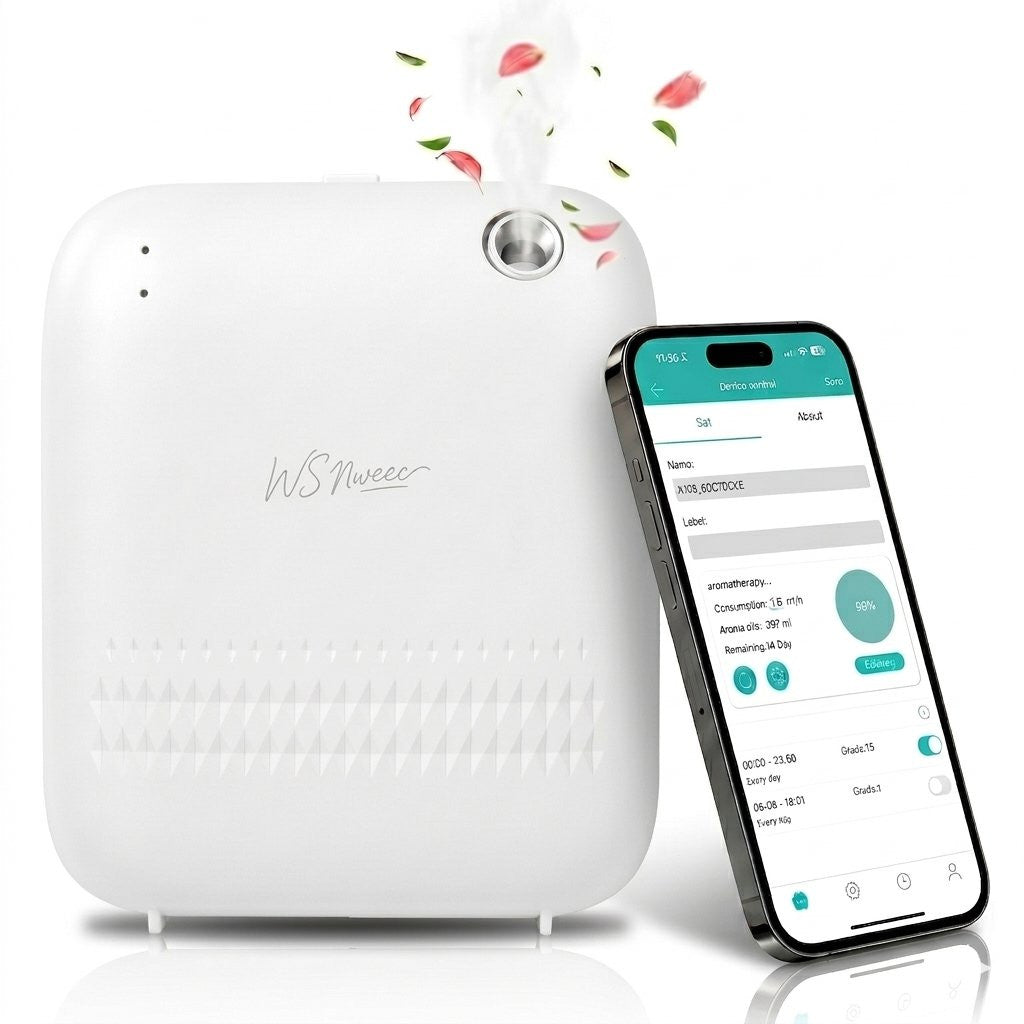

A scent-tailored waterless diffuser that brings hotel-inspired scent architecture into your space — on Type-C power or a single D-cell battery.

500 sq. ft coverage 150 ml bottle Type-C or 1× D battery Bluetooth app control Wall mount or desktop

Model AE109 · 1-D Battery Version · Product Manual

Home › Guides › AE109 Setup Guide

Updated Oct 13, 2026·7 min read·Reviewed by WSNUEEE Product Support·Model AE109

Information

Specifications

Everything you need to know about your AE109 before the first use.

NAME	Aroma Diffuser
MODEL	AE109
NET WEIGHT	420 g
BOTTLE	150 ml
INPUT	Type-C 5V⎵1A Max
POWER	1.24 W
DIMENSION	166.9 × 137.5 × 67 mm6.5 × 5.4 × 2.6 in
COVERAGE	500 sq. ft

Ideal For

Home

Lobby

Restroom

Bedroom

Office

Home & Commercial

WSNUEEE designed this white waterless diffuser for homes and commercial spaces alike. Run it on Type-C power or a D-cell battery — set it on a desk, mount it on a wall, place it in the garden, or take it camping. Works with fragrance oils, plant essential oils, pet oils, and mosquito repellent. (Sold separately.)

Information

Structure & What's Included

Get to know the parts of your AE109 and check the box contents before you begin.

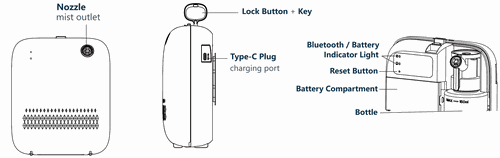

AE109 front, side and rear views with labelled parts — nozzle, lock button and key, Type-C plug, indicator lights, reset button, battery compartment and bottle

Nozzle — mist outlet
Lock Button + Key
Type-C Plug — charging port

Bluetooth / Battery Indicator Light
Reset Button
Bottle & Battery Compartment

What's Included

Bottle

Wall Bracket

Key for unlocking the AE109 diffuser head

Key

Two mounting screws for the AE109 wall bracket

Screws × 2

Type-C Cable

Manual

Power Note

Power the device with a 1× D-cell battery or plug in the Type-C cable. Battery is not included in the box.

Usage Instructions

Fragrance Oil Refill Steps

Four simple steps to refill your diffuser — no water, no mess.

Insert the key, rotate it counterclockwise, and press the unlock button.

Unscrew the bottle and fill with your fragrance essential oil. Do not fill beyond the MAX line — overfilling may cause oil leakage.

Align and place the bottle and diffuser head back into the machine.

Lock the machine — ready to diffuse.

Oil Selection Guide

For the best results, we recommend using WSNUEEE oils with your WSNUEEE Waterless Diffuser. You can also use high-quality, pure oils from reputable brands, available online or in stores. Please avoid low-quality or heavily diluted oils, as they may affect fragrance diffusion and your overall experience.

Can't smell the scent? Check the oil first. In many cases, the fragrance experience depends on the quality and concentration of the oil — not the diffuser itself.

Usage Instructions

Installation · Two Ways

Mount it on a wall or set it on a surface — the AE109 fits wherever the scent should live.

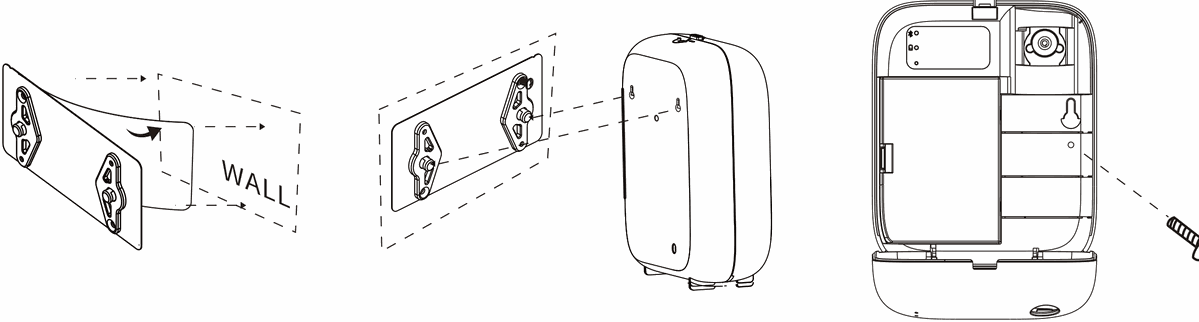

Wall Mount — Peel the adhesive from the wall-mount bracket, stick it to a clean wall, and wait 10 minutes. Hang the device onto the bracket, then tighten the screws to secure it.

Key Points for the Adhesive Strip

Wipe the wall with alcohol first — the surface must be clean, dry, and grease-free.
Avoid tile joints, uneven or damaged areas; use smooth, intact surfaces.
Press the strip from the center outward to push out air bubbles.
Avoid high heat (≥60°C), water contact, or AC vents. Check the strip monthly and replace it if it lifts or ages.

Bluetooth

Connect Your Device via App

The AE109 pairs with the free Scent Marketing app — schedule scent periods, set intensity, and track oil usage from your phone.

Download the Scent Marketing app — scan the QR code, or search "Scent Marketing" in Google Play or the App Store.

Compatible with iOS & Android. This device connects via Bluetooth only.

QR code to download the Scent Marketing app

Turn on Location on your phone.

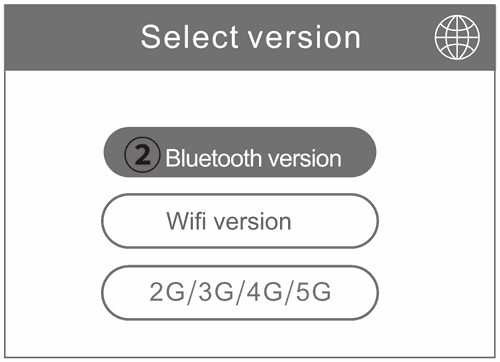

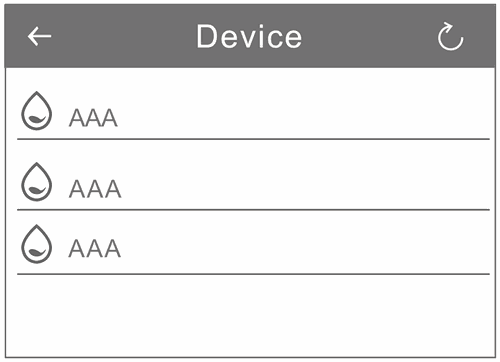

Open the app and select the Bluetooth version. This device can only be connected via Bluetooth.

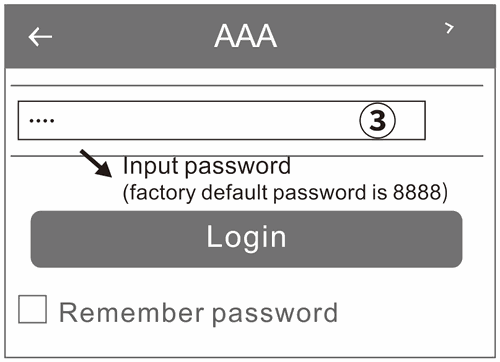

Enter the default password 8888 and tap Login.

Bluetooth

How to Operate via App

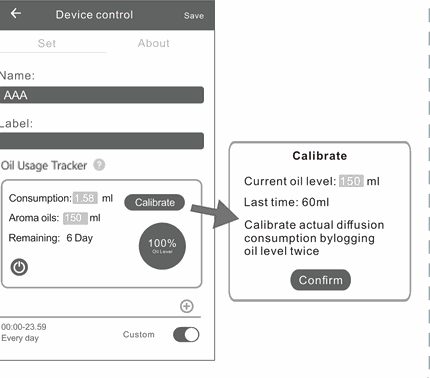

①Device Name & Remark

To change the name or label, tap the top-right corner on the device page.

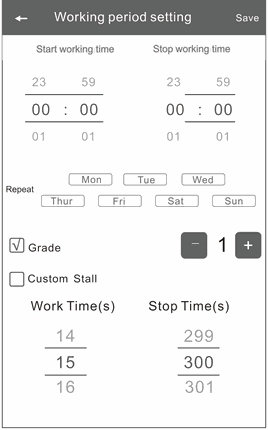

②Set Working Time

Tap "+" to enter working period settings. Up to 5 periods per day. Swipe left to delete; tap the toggle to enable or disable a period.

③Daily Working Period

Scroll up or down on "Start" and "Stop" to set the machine's daily working hours.

④Weekly Working Days

Select the working days when the machine will operate. All dates are pre-selected by default.

⑤Scent Intensity

Tap "Gear" + / − to increase or decrease the preset scent intensity level (1–5 levels).

⑥Custom Work & Pause

Drag the progress bar, scroll up or down to select the work time and pause time.

⑦Change Password

Open "About" → tap "Change Password" → enter a new 4-digit password and tap "Confirm". If you forget your password, press and hold the reset button on the device for 3–5 seconds, then enter the default password 8888 to access the system.

Reference

Function Description

What each indicator light, beep and button means on your AE109.

Power On

Bluetooth Indicator Light	Lights up for 2 seconds, then flashes, according to the corresponding functions.
Battery Indicator Light	When the light quickly flashes, it indicates the super capacitor is charging; after fully charged, it will display the normal battery level.
Buzzer	Beeps once. It will not beep when the battery level is extremely low (to avoid draining the battery and causing MCU resets).

Indicator Lights

Bluetooth Light (Blue)	Stays on when connected to the Bluetooth app · stays off when not connected · flashes briefly when receiving a signal. Fully charged: light off. Power on, waiting for the super capacitor to charge: light quickly flashes (only applicable to B1).
Battery Light	Low battery: light flashes once every 3 seconds · extremely low battery: light is off.

Buzzer

Bluetooth Operation	Beeps once when receiving Bluetooth data.
Button Operation	Beeps once when restoring the password · long beep when restoring factory settings.

Buttons

Reset Button

Short press: restores the default password (8888). Long press: restores all settings to factory defaults.

Reference

Grade and Working Period

B1 · 150 ml bottle — calculated for 10 hours of working per day.

Grade	Work Time (s)	Pause Time (s)	Consumption (g/h)
G1	3	170	0.09
G2	3	120	0.13
G3	3	85	0.18
G4	5	70	0.36
G5	7	60	0.56
Custom	3–7	40–900	—

How to Choose a Grade

Each grade is a preset cycle of work time and pause time. Choose a lower grade for a light, continuous scent and longer oil life; choose a higher grade for faster, stronger diffusion. Custom lets you set both values manually to match any space.

Notes

Above data is for reference only. If you use essential oils with different viscosities, the oil consumption will vary.
For the best diffusion effect, we recommend essential oils with a viscosity below 60 mpa·s and a flash point higher than room temperature (>25°C).
For low-viscosity essential oils (< 6 mpa·s), set runtime ≤ 3s to avoid oil residue.

Safety

Warnings & Safety

Please read the following before using your AE109.

Keep in Mind

Keep out of reach of children and pets. Do not let children play with the device.
This device is for use with essential oils only. Read the manual fully before first use.
Not intended for infants, or people with reduced physical, sensory, or mental capabilities, unless supervised.
Best operating conditions: 20–35°C (68–95°F), humidity below 85%.
Store oils in a cool, dry place, tightly capped, away from direct sunlight.

Do Not

Keep away from open flames and heat sources.
Do not swallow the oil. If swallowed, seek medical help right away.
Do not apply the oil directly to your skin.
Avoid extreme temperatures — below −5°C (23°F) or above 40°C (104°F).
Use only the provided power adapter. Do not use a fast charger.
Do not modify, disassemble, or repair the device yourself. Contact support for repairs.
Keep the device upright. Tilting it may cause leaks or malfunction.

Safety & Care

Do not get the device or charging port wet. Avoid overloaded outlets, damaged cords, or faulty plugs.
Do not pull, crush, cut, or tamper with the power cord.
Use only the recommended fragrance medium. Other substances may be toxic or flammable.
Wipe up any spilled oil immediately.
Do not aim the mist directly at an AC vent or against airflow.
Dispose of the device and its battery per local regulations. Remove the battery before disposal.

EU Compliance

For sale and use in a business environment. RED Art. 10.2: usable across EU member states · RED Art. 10.10: class I product, no restrictions. RF distance to body: 20 cm · Frequency: 2402–2480 MHz · Max. RF output: −1.67 dBm (EIRP) @2 Mbps.

Support

Troubleshooting & Care

Most scent issues trace back to the oil or the atomizing core. Start here.

Issue	Cause	Solution
Not working	Battery is dead.	Replace the battery or plug in the Type-C cable.
No mist or weak mist	Atomizing core is clogged.	Clean the core or replace it. (Clean monthly.)
	Liquid tube or gasket is loose.	Check and tighten, or replace the gasket.
Oil leakage	Bottle or gasket is loose.	Tighten the parts or replace the gasket.
Liquid spray	Device is tilted, or oil level is too high.	Keep upright. Fill below 90% capacity.
	Atomizing core is clogged.	Clean the core or replace it.
Unusual noise	Air pump is loose, or oil level is too high.	Re-secure the pump. Fill below 90% capacity.

Cleaning & Maintenance

Clean when switching oils or when mist output drops. Recommended about once a month. You will need: alcohol.

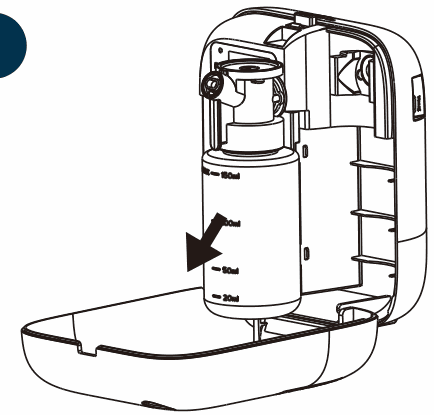

Remove the diffuser head and unscrew the bottle.

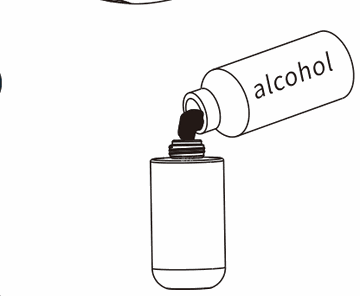

Pour alcohol into the bottle (30–90% full), reinstall it, and run at the highest setting for 15–30 minutes.

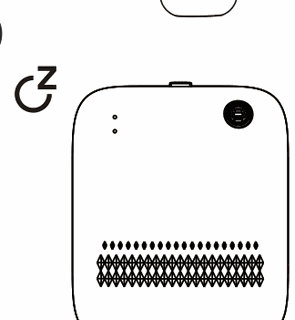

Discard any remaining alcohol and let the bottle, tube, and nozzle dry completely.

Questions

Frequently Asked Questions

Quick answers to the things AE109 owners ask most.

What powers the WSNUEEE AE109 waterless diffuser?

The AE109 runs on a 1× D-cell battery or Type-C power (5V 1A max). The battery is not included in the box.

How do I install the AE109?

Two ways. Wall mount: peel the adhesive from the wall-mount bracket, stick it to a clean wall, wait 10 minutes, hang the device and tighten the screws. Desktop: place the device upright on a flat, stable surface away from edges.

Which fragrance oils can I use?

Use pure essential or fragrance oils. For best diffusion, choose oils with a viscosity below 60 mpa·s and a flash point above 25°C. For low-viscosity oils under 6 mpa·s, set runtime to 3 seconds or less. Avoid low-quality or heavily diluted oils.

Which app does the AE109 use and what is the password?

The AE109 connects by Bluetooth to the free Scent Marketing app (iOS and Android). Turn on Location, choose Bluetooth version, and log in with the default password 8888.

How often should I clean the diffuser?

Clean about once a month, or whenever you switch oils or mist output drops. Remove the diffuser head, fill the bottle 30–90% with alcohol, run at the highest setting for 15–30 minutes, then discard the alcohol and let everything dry completely.

What should I do if there is no mist or weak mist?

The atomizing core is usually clogged — clean or replace it (clean monthly). Also check that the liquid tube or gasket is not loose and tighten or replace it.

How long does a 150 ml bottle of oil last?

At the default G3 grade (0.18 g/h, 10 h/day) a 150 ml bottle lasts about 3 months. Higher grades use more oil; G5 lasts roughly 4 weeks.

Why can't I smell the fragrance?

Check the oil first — low-quality or overly diluted oils diffuse poorly. Also confirm the bottle is seated, the grade is high enough for the room size, and the atomizer isn't clogged.

Is the AE109 safe around pets and children?

Use only as directed and keep oils out of reach. Ensure the space is ventilated. Stop use if anyone shows irritation, and follow the safety section in this guide.

How do I clean and maintain the diffuser?

Wipe the exterior with a soft dry cloth. For the oil path, run a short clean cycle with a little isopropyl alcohol, then air-dry before the next refill.
